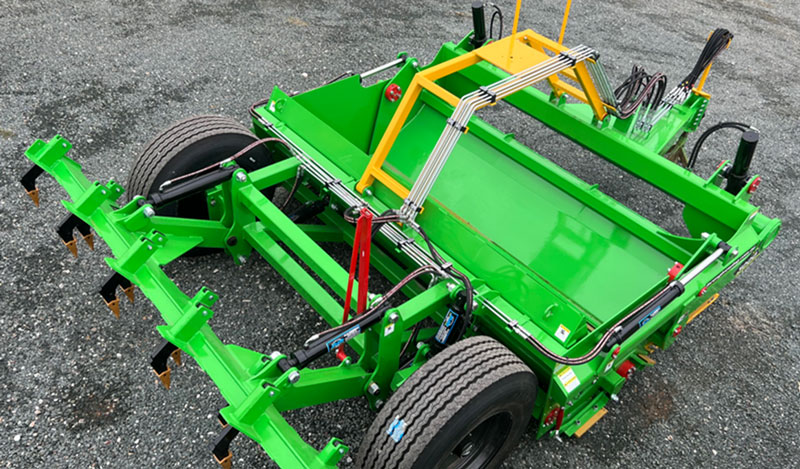

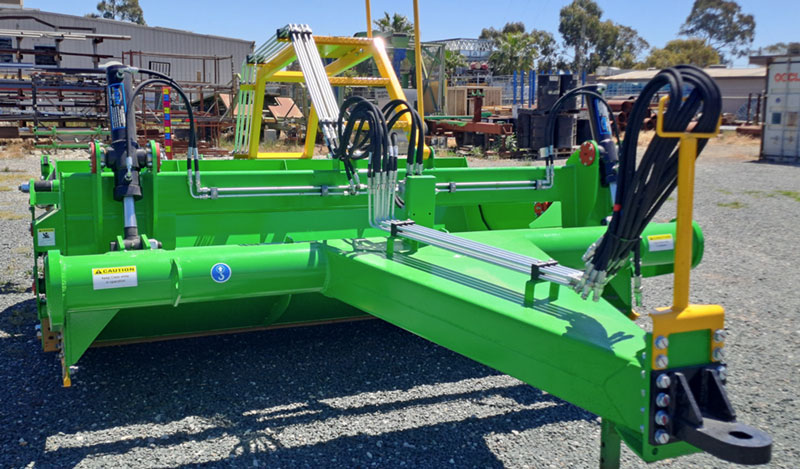

The Wolf is a new innovation from JNR that will impress operators who are drawn to a tipping operation.
Replacing our previous LB model, the Wolf has been specifically designed to improve on the tipping bowl hinge bar system used in other models. A nifty piece of ingenuity, our new pivot pin system makes maintenance a walk in the park, replacing the outdated and time consuming hinge bar system.
The Wolf retails at a slightly lower price point in comparison to the Honey Badger Series as it carries slightly less material and is well suited to market gardeners or the smaller farmer.
Optional extras include double row rippers and upgraded 500/50 x 22.5 tyre selection.
| Wolf Specs | 2.7m | 3.0m |
|---|---|---|
| Tractor Horsepower Range | 180-200 | 220-240 |
| Struck Capacity (approx.) | 3.9 m³ | 4.3 m³ |
| Heaped Capacity (approx.) | 6.3 m³ | 7.0 m³ |
| Cutting Width | 2700 mm | 3000 mm |
| Overall Width | 2988 mm | 3288 mm |
| Overall Length | 5985 mm | 5985 mm |
| Overall Height | 1665 mm | 1665 mm |
| Apron Opening | 1000 mm | 1000 mm |
| Maximum Cutting Depth | 50 mm | 50 mm |
| Cutting Edge Clearance | 260 mm | 260 mm |
| Clearance Under Rear | 252 mm | 252 mm |
| Cross-Level | 5° one way RHS | 5° one way RHS |
| Shipping Weight (approx.) | 3460 kg | 3840 kg |
| Weight at Drawbar (approx.) | 1038 kg | 1152 kg |
| Tyres | 15R Super Singles Optional - 500/50 x 22.5 |
15R Super Singles Optional - 500/50 x 22.5 |
| Cutting Edge | 8" Single Hole | 8" Single Hole |
J.N. & R. Engineering Pty Ltd
23 McCormick Rd, Kyabram VIC 3620, Australia
