Feeding hay to your cattle a gruelling task? Ease the burden with the toughest hay feeders on the market today – JNR’s Bale Bull range.

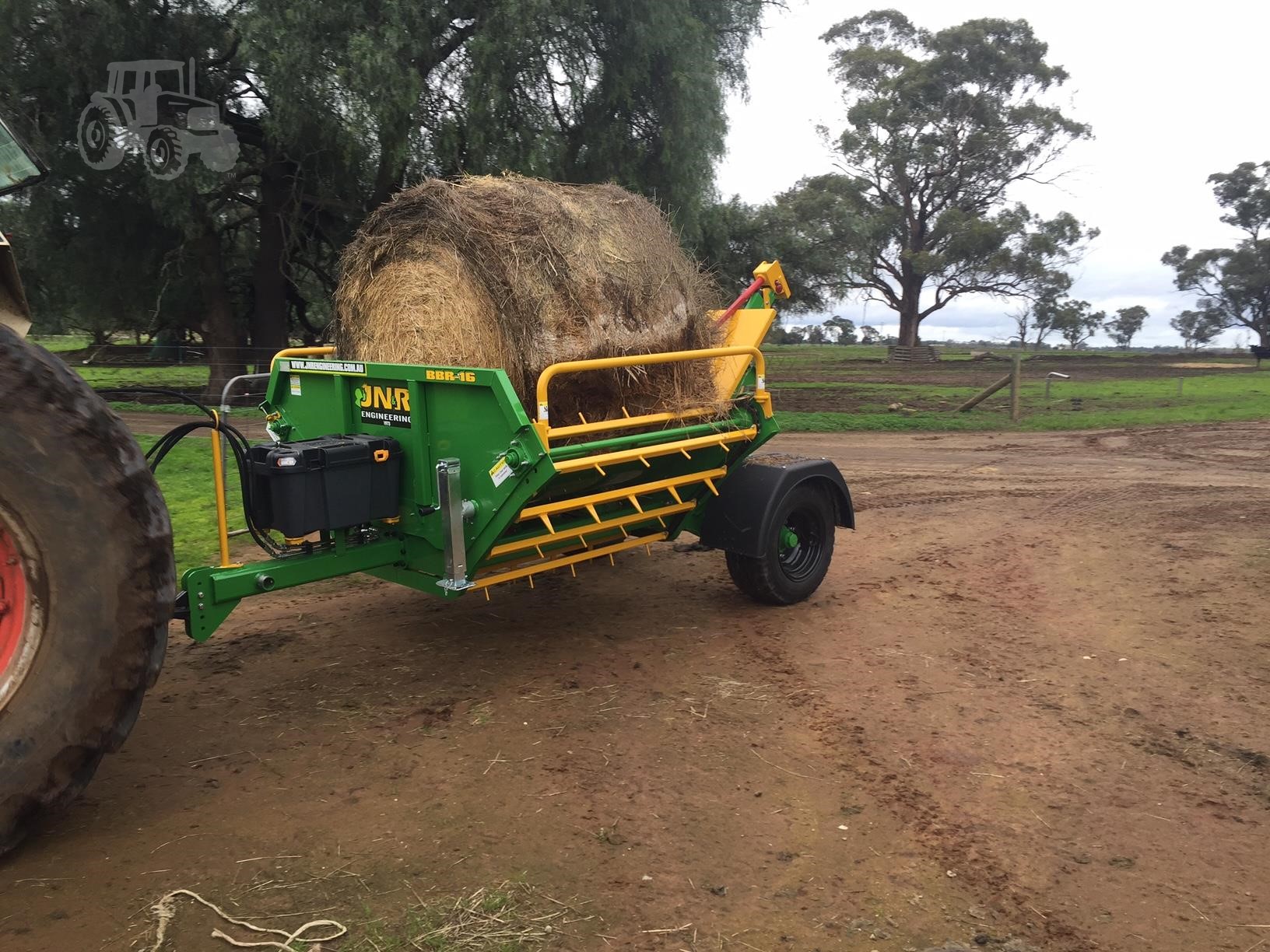

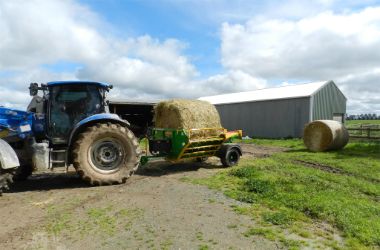

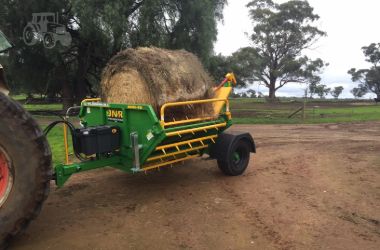

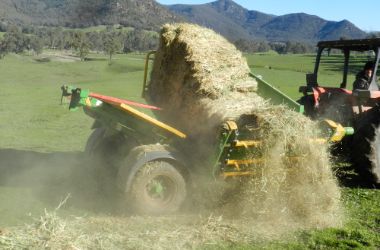

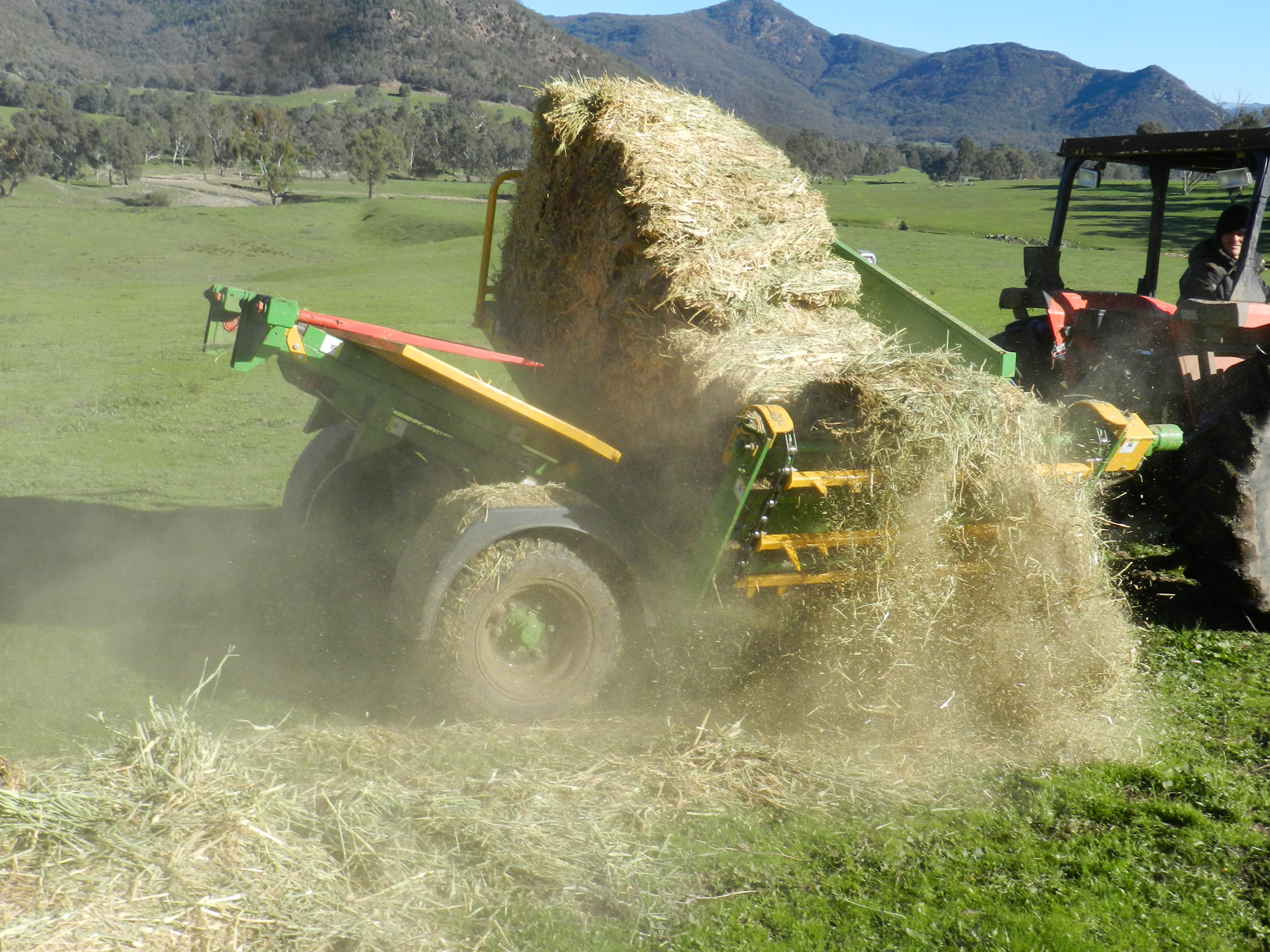

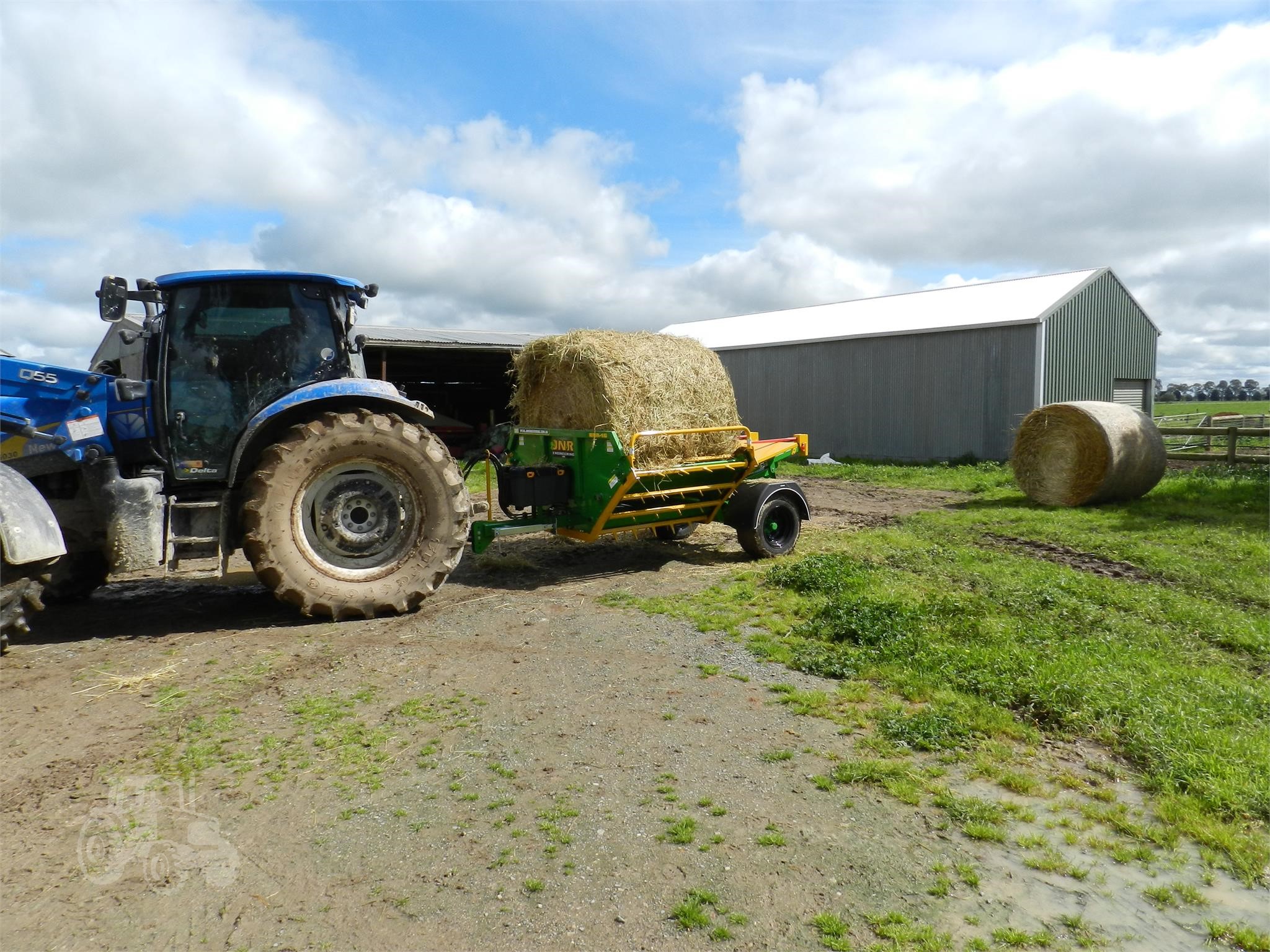

Specifically designed to feed round bales, the BBR is a robust machine built tough to last through trying conditions.


Its contoured feed chamber made from heavy gauge steel, ensures a smooth rotation of the round bale via the 6000 lb conveyor chain which operates in either a forward or reverse motion. These features combine to ensure uninhibited dispersion of feed over either side of the machine, regardless of bale’s spiral direction.


bale bull logo

BBR

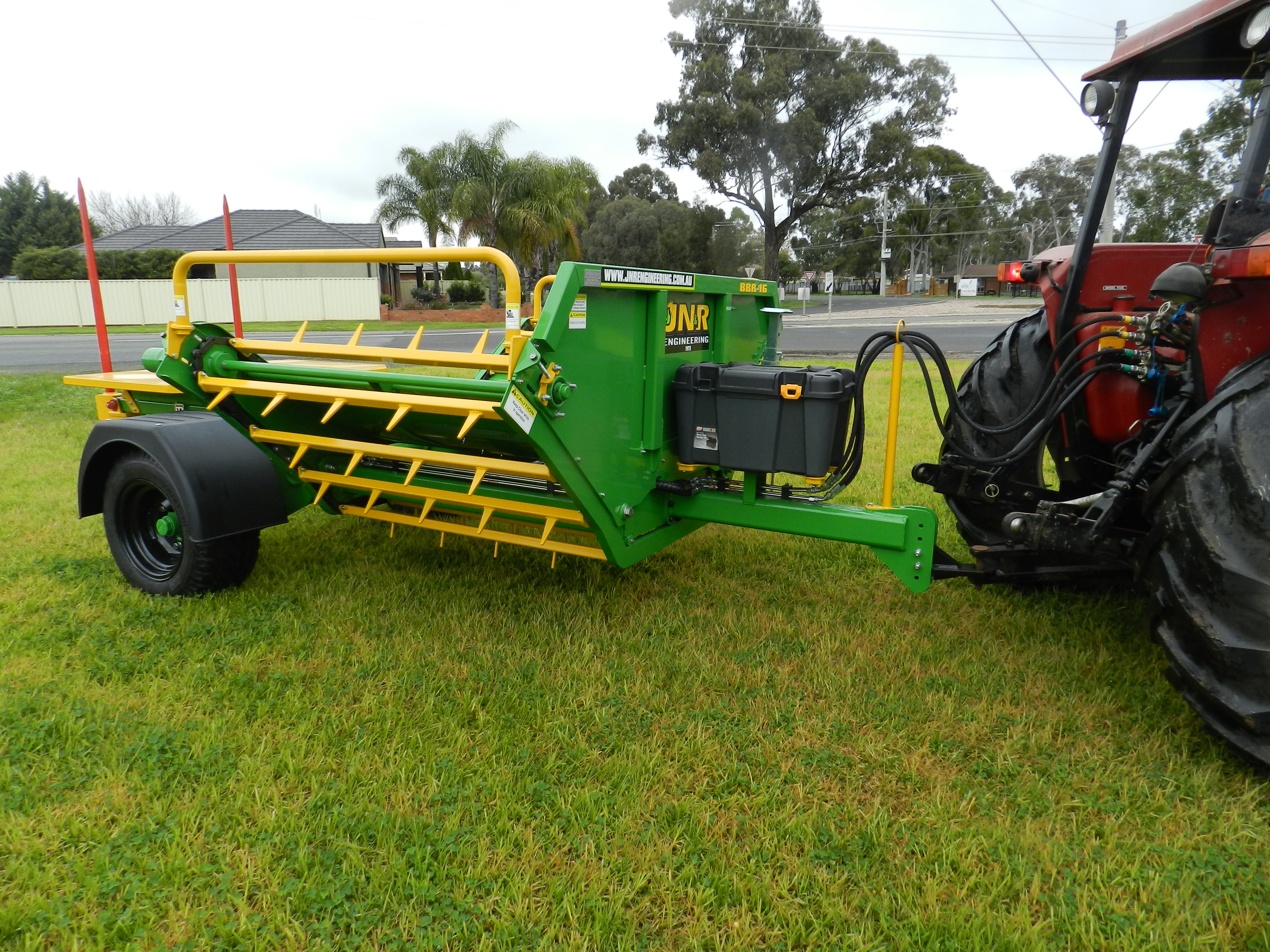

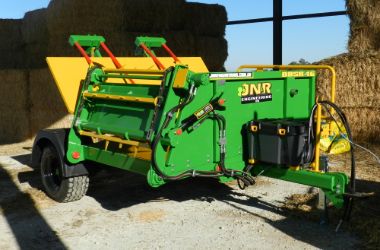

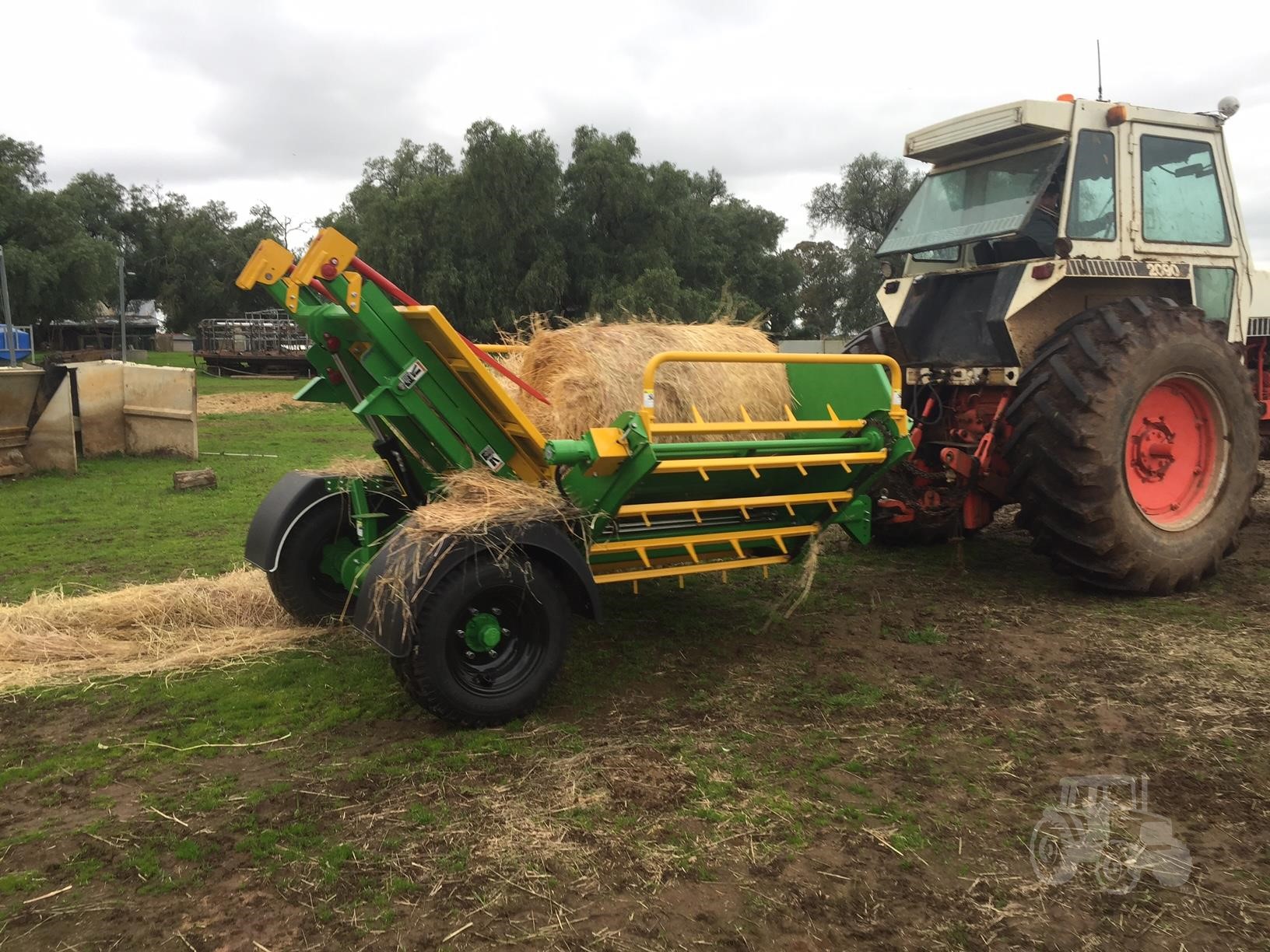

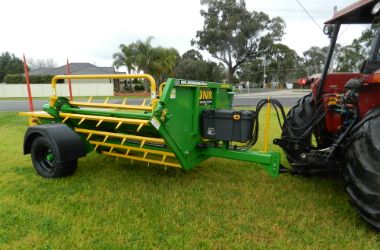

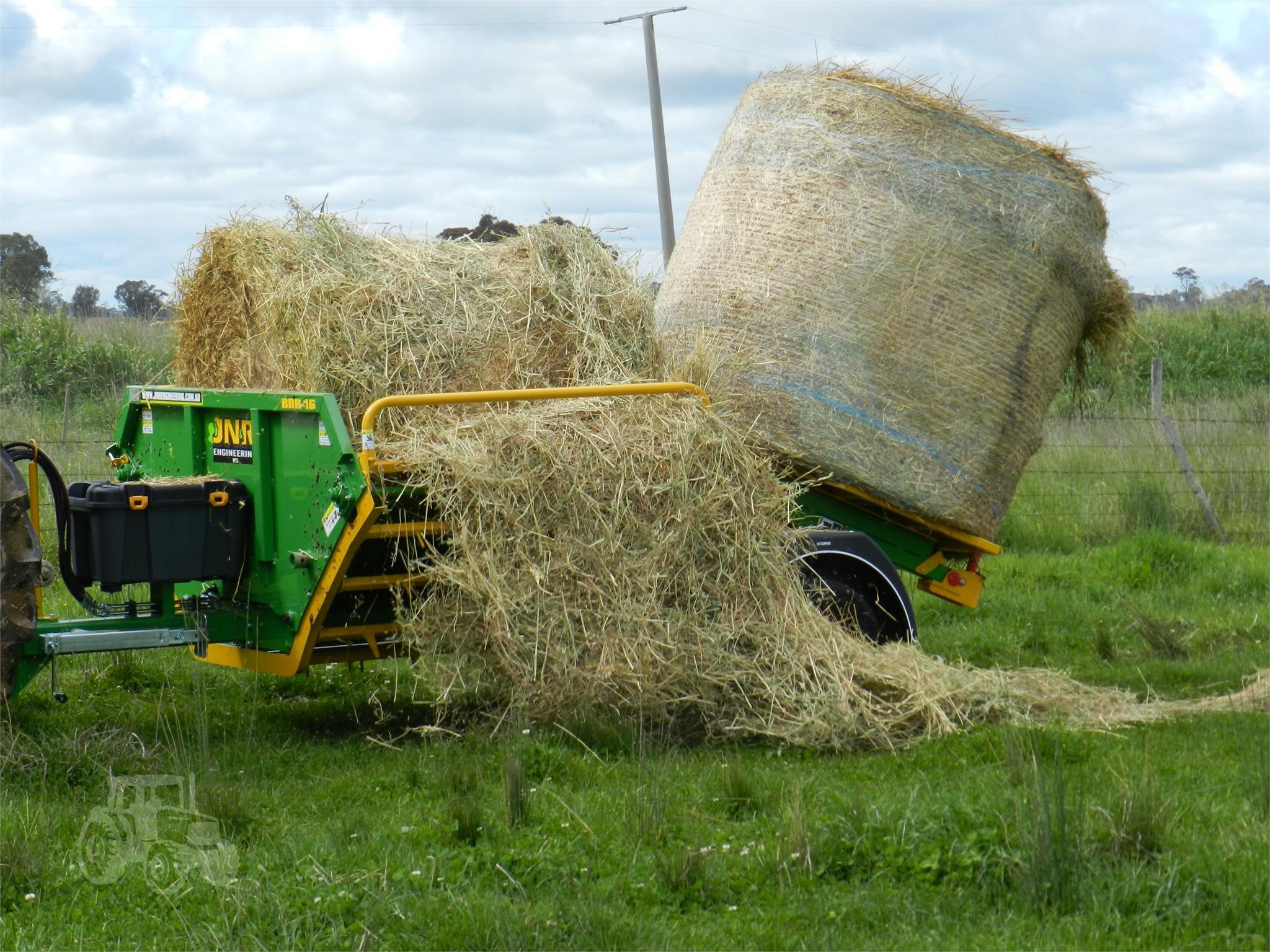

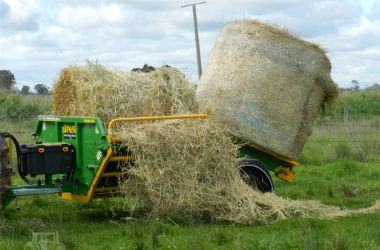

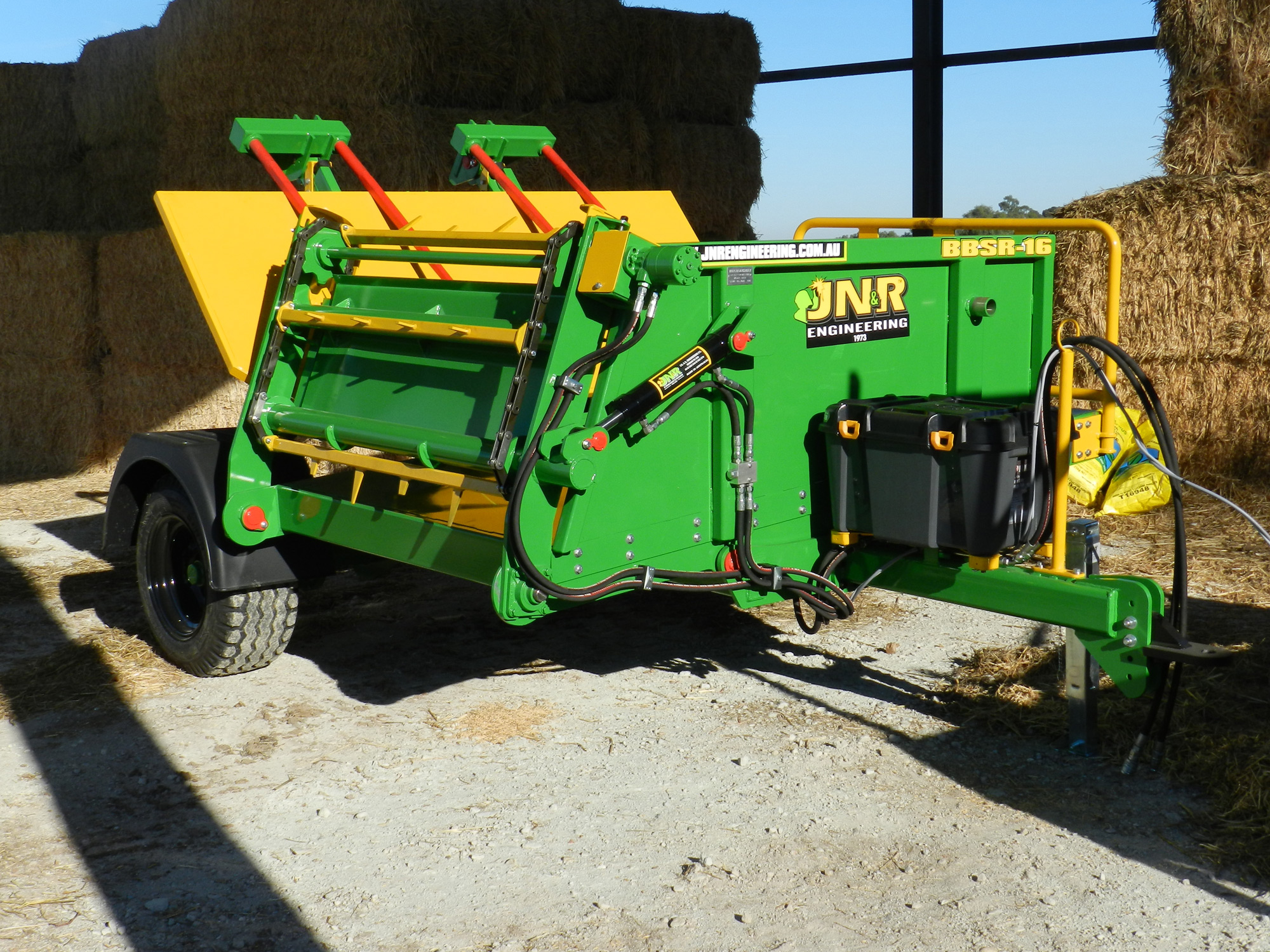

Feeding both square and round bales? The versatile BBSR offers you more flexibility in hay feeding. The heavy gauge steel full floor adequately supports hefty square bales as well as the heaviest of rounds. An adjustable Feed Arm (39° range of motion) and Feed Table (30° range of motion), provide manoeuvrability and control for a trouble-free feed out – every time.


Similar features you’ll find across the range include:


  • Collapsible Forks cleverly manoeuvre bale into Chamber for easy bale feed out
  • Aggressive and Normal Feed Bars provide freedom to control the desired level of aggression of the feed out rate especially the toughest silage bales
  • Two bale carrying capacity – one in Chamber and one on tractor Forks
  • Power Pack available for feeding behind Ute
  • String Box safely and conveniently stores away your string and wrap
  • Park Jack provides a safe and easy way to hook and unhook tractor
  • Fully enclosed mud guards keep feed clean
bale bull logo

BBSR

BALE BULL SPECS BBR BBSR
Horsepower Range 100-200 100-200
Overall Width 2556 mm 2700 mm
Overall Length 4400 mm 4400 mm
Overall Height 1570 mm 2030 mm
Shipping Weight (approx.) 1290 kg 1430 kg
Hydraulic Motor BR315 x 32 mm (Fwd + Rev) BR315 x 32 mm (Fwd + Rev)
Fork Tynes 980 mm 1240 mm (x2) 980 mm (x2)
Feed Bars 17 Feed Bars 4 Standard (optional 5)
Park Jack 2 ton 2 ton
String Box Sheet Metal Sheet Metal
Chain 6000 lb Conveyor Chain 6000 lb Conveyor Chain
Stubs 60 mm Square 60 mm Square
Tyres 13/55 x 16 13/55 x 16
